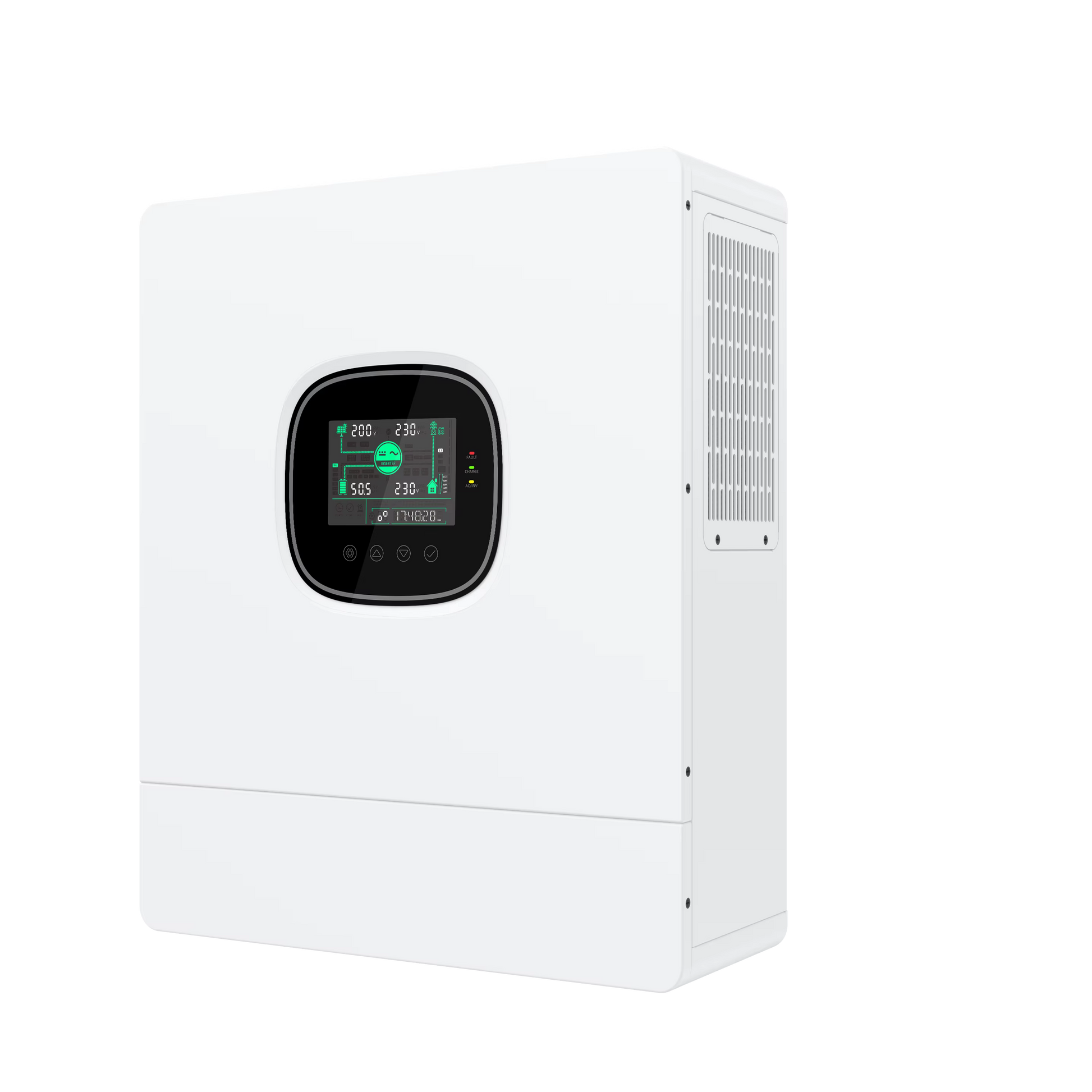

5000W All-In-One48V Split Phase Solar Power Inverter for Off Grid System| 100A MPPT Controller and 48V DC to 120V AC Pure Sine Wave

Contact us for a Shipping quote!

Supports Parallel Connection of Multiple Units: Up to 6 units can be paralleled for a total maximum output power of 30kW. It supports single-phase or split-phase parallel systems. A single inverter outputs 120V, while multiple units in parallel can provide 120V, 208V, or 240V output to meet different power needs.
·Battery-Free Operation Capability: The inverter can continuously run without battery input, directly powering the load from photovoltaic (solar) DC current, reducing reliance on batteries and lowering maintenance burdens.
·Flexible Charging and Discharging Modes: It features three output priority modes—mains priority, battery priority, and PV priority—and four charging modes: only solar, mains priority, solar priority, and mains & solar hybrid. This allows flexible scheduling of charging and discharging periods according to local grid conditions, optimizing energy usage and saving electricity costs.
·High-Performance Technical Specifications: Maximum PV input power is 5500W, PV input voltage range is 120-500V DC, maximum MPPT charging current is 100A, rated output power is 5000W, peak output power up to 10,000W, and it supports 120/240V AC single-phase or split-phase output.
·Intelligent Monitoring and Multiple Protections: Equipped with an LCD display for real-time system status monitoring and supports remote monitoring and management via a dedicated mobile app. It also features multiple intelligent protection functions such as PV input current and power limiting, over-voltage protection, night reverse current prevention, and multiple cooling fans to ensure safe and stable operation while enhancing user convenience.
